Description
Flat-profile Floodlight specifically designed for sports stadium lighting. This family offers three different sizes and a wide power range, from 250W to 1500W. It is available with multiple light distributions to suit each project. Its bracket-mounted design allows for tilting at any angle. It is designed for any dimming control system. It also includes a laser pointer mount for precise aiming of the Floodlights .
MAIN FEATURES:
High efficiency. Up to 173.8 lm/W actual.
3 different sizes. From 250W to 1500W
Ultralight IP compact driver
Independent module regulation
High heat dissipation capacity
DALI & DMX control
High resistance to 5G vibrations
Aluminum and magnesium body to reduce weight and improve heat transfer
Centralized junction box with watertight connectors for easy installation
APPLICATIONS:
Large Area Sports Facilities; Football, Rugby, Athletics
Major Infrastructure Projects; Airports and Ports
See more… Success stories that inspire
Other products of the family
![]()
High-efficiency LED modules.
![]()
Lightweight and high thermal transmission.
![]()
Easy installation.
| Real luminous flux (T) =85ºC) | Initial luminous flux (T) =25ºC) |
| REF. | Nº LEDs | Power W | I Driver mA | Flux lm | Efficacy lm/W | Flux lm | Efficacy lm/W |
| APOLO L | APAL | 264 | 600 | 720 | 100200 | 167 | 109200 | 182 |
| 264 | 800 | 960 | 133600 | 167 | 144000 | 180 |
| 264 | 1000 | 1200 | 167000 | 167 | 179000 | 179 |

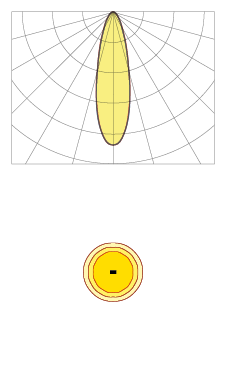

Circular 25º (C3)

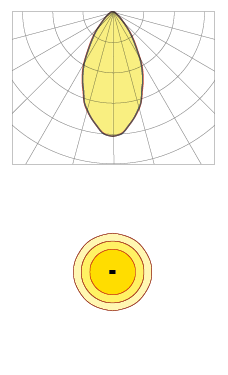

Circular 50° (C5)
*Show 4 recommended lighting distributions. Refer to the 18 typologies.
