Luminaire Neovilla-Alu
ILNA
X Product added successfully to your WISHLIST. If you want to see all the products click here.
Description
Classic decorative luminaire with an exclusive design including all necessary technical details for LED technology. Ideal for historical places and urban areas such as roads and squares. Ready for any intelligent lighting control solutions.
MAIN FEATURES:
High efficiency. Up to 134 lm/W actual.
From 20W to 80W
18 Different light distributions
Zhaga Standard (Book 15)
Tempered glass with silicone sealing gasket to achieve an IP66 rating.
Tool-Free Opening
APPLICATIONS:
Historic Centers
Residentials Streets (Zones 30)
Pedestrian Zones
Commercial and Tourist Streets
Rural Roads
See more… Success stories that inspire
Other products of the family
| Real luminous flux (T) =85ºC) | Initial luminous flux (T) =25ºC) |
| REF. | Nº LEDs | Power W | I Driver mA | Flux lm | Efficacy lm/W | Flux lm | Efficacy lm/W |
| Neovilla Alu | ILNA | 16 | 20 | 375 | 2600 | 130 | 2964 | 148 |
| 16 | 30 | 563 | 3900 | 130 | 4446 | 148 |
| 16 | 40 | 750 | 5160 | 129 | 5882 | 147 |
| 16 | 60 | 1125 | 7680 | 128 | 8755 | 146 |
| 32 | 80 | 750 | 10400 | 130 | 11856 | 148 |
| 32 | 100 | 938 | 12900 | 129 | 14706 | 147 |

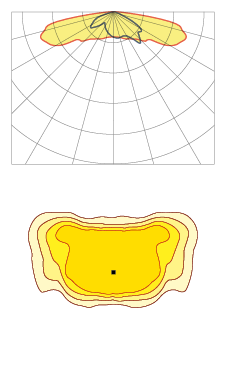

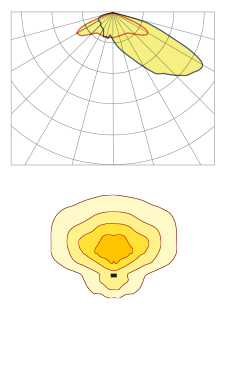

Asymmetric Extensive (AE)
Asymmetric Extensive Wide (A3)
Symmetric Extensive (SE)
Asymmetric Extensive Frontal (A1)
*Show 4 recommended lighting distributions. Refer to the 18 typologies.
