Description
Classic decorative luminaire with an exclusive design including all necessary technical details for LED technology. Ideal for historical places and urban areas such as roads and squares. Ready for any intelligent lighting control solutions.
MAIN FEATURES:
High efficiency. Up to 134 lm/W actual.
From 20W to 80W
18 Different light distributions
Zhaga Standard (Book 15)
Tempered glass with silicone sealing gasket to achieve an IP66 rating
Tool-Free Opening
APPLICATIONS:
Residentials Streets
Historic Centers
Green Areas
Pedestrian Walkways and Ramblas
See more…
| Real luminous flux (T) =85ºC) | Initial luminous flux (T) =25ºC) |
| REF. | Nº LEDs | Power W | I Driver mA | Flux lm | Efficacy lm/W | Flux lm | Efficacy lm/W |
| Isabelina | ILIS | 16 | 20 | 375 | 2600 | 130 | 2964 | 148 |
| 16 | 30 | 563 | 3900 | 130 | 4446 | 148 |
| 16 | 40 | 750 | 5160 | 129 | 5882 | 147 |
| 16 | 60 | 1125 | 7680 | 128 | 8755 | 146 |
| 32 | 80 | 750 | 10400 | 130 | 11856 | 148 |
| 32 | 100 | 938 | 12900 | 129 | 14706 | 147 |

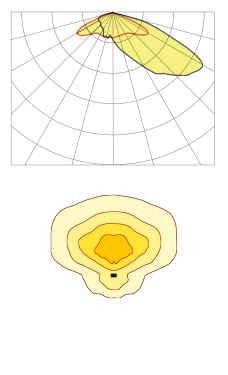

Asymmetric Extensive Frontal (A1)
Asymmetric Extensive Wide (A3)
Asymmetric Extensive (AE)
Symmetric Extensive (SE)
*Show 4 recommended lighting distributions. Refer to the 18 typologies.
