https://ferrocolat.benito.com/en/covers-and-grates/round-manhole-covers/punto--T2063K..html T2063K. Punto 0
Explore our catalogs and discover all the available options
×
| REF. | ØFRAME | HEIGHT | ØCOVER | CLEARANCE | UNITS/Pallet |
| T2063. | 800 | 100 | 625 | 600 | 12 |
| T2063K. | 850 | 100 | 625 | 600 | 12 |
X Product added successfully to your WISHLIST. If you want to see all the products click here.
Description
Punto is designed to support medium traffic. It is perfect for installing on roads with an ADT of 1.000-20.000, particularly road carriageways (including pedestrian streets), stabilised hard shoulders and parking areas for all manner of vehicles.
- Made from spheroidal graphite ductile cast iron, according to ISO 1083 (Type 500-7) and standard EN 1563.
- Compliant with the European standard UNE EN-124.
- Ball and socket joint to guarantee easy opening and safety in operation.
- 90º safety locking and maximum aperture angle of 115º.
- Sound-proof joint included.
- Metal non-slip surface.
- Coated with non-toxic, non-flammable and non-polluting water-soluble black paint.
See more… Other products of the family
| REF. | | ØA | B | H | ØC | ØP | UN. |
| T2063. | SGS | 800 | - | 100 | 625 | 600 | 12 |
| T2063K. | SGS | 850 | 850 | 100 | 625 | 600 | 12 |

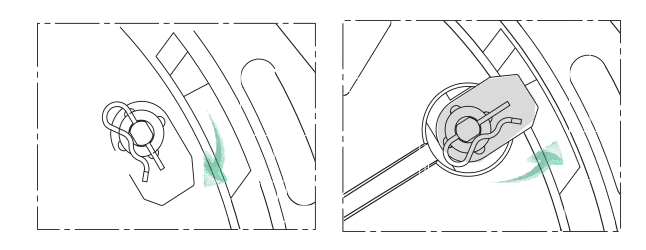

With optional closure
Open - Lock
