Luminaire Elium Mini
ILLI1
X Product added successfully to your WISHLIST. If you want to see all the products click here.
Description
Extra flat luminaire with an excellent relation between efficiency and cost. Available in three sizes with extensive optical and light distributions to cover all applications. Ideal to be installed on 4m to 12m lighting poles.
MAIN FEATURES:
High efficiency. Up to 142 lm/W real
3 different sizes. From 20W to 150W
Easy opening with standard tools
18 different light distributions
Zhaga Standard (Book 15)
Ready 4IoT. Ready for connectivity
APPLICATIONS:
Urban Roads and Streets
Cycle Lane and Narrow Tracks
Rural Roads
Parking
See more… Other products of the family
| Real luminous flux (T) =85ºC) | Initial luminous flux (T) =25ºC) |
| REF. | Nº LEDs | Power W | I Driver mA | Flux lm | Efficacy lm/W | Flux lm | Efficacy lm/W |
| ELIUM MINI | ILLI140 | 8 | 20 | 750 | 2820 | 141 | 3215 | 161 |
| 16 | 20 | 375 | 2842 | 142 | 3240 | 162 |
| 16 | 30 | 563 | 4242 | 141 | 4836 | 161 |
| 16 | 40 | 750 | 5642 | 141 | 6432 | 161 |

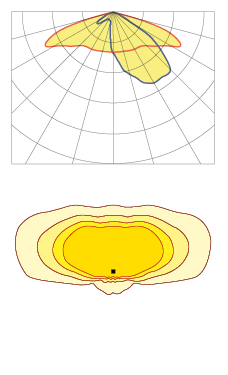

Asymmetric Extensive (AE)

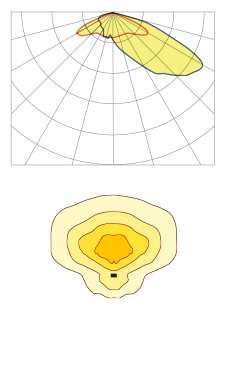

Asymmetric Extensive Narrow (A2)

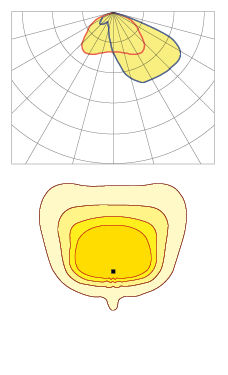

Asymmetric (A4)
Asymmetric Extensive Frontal (A1)
*Show 4 recommended lighting distributions. Refer to the 18 typologies.
