Description

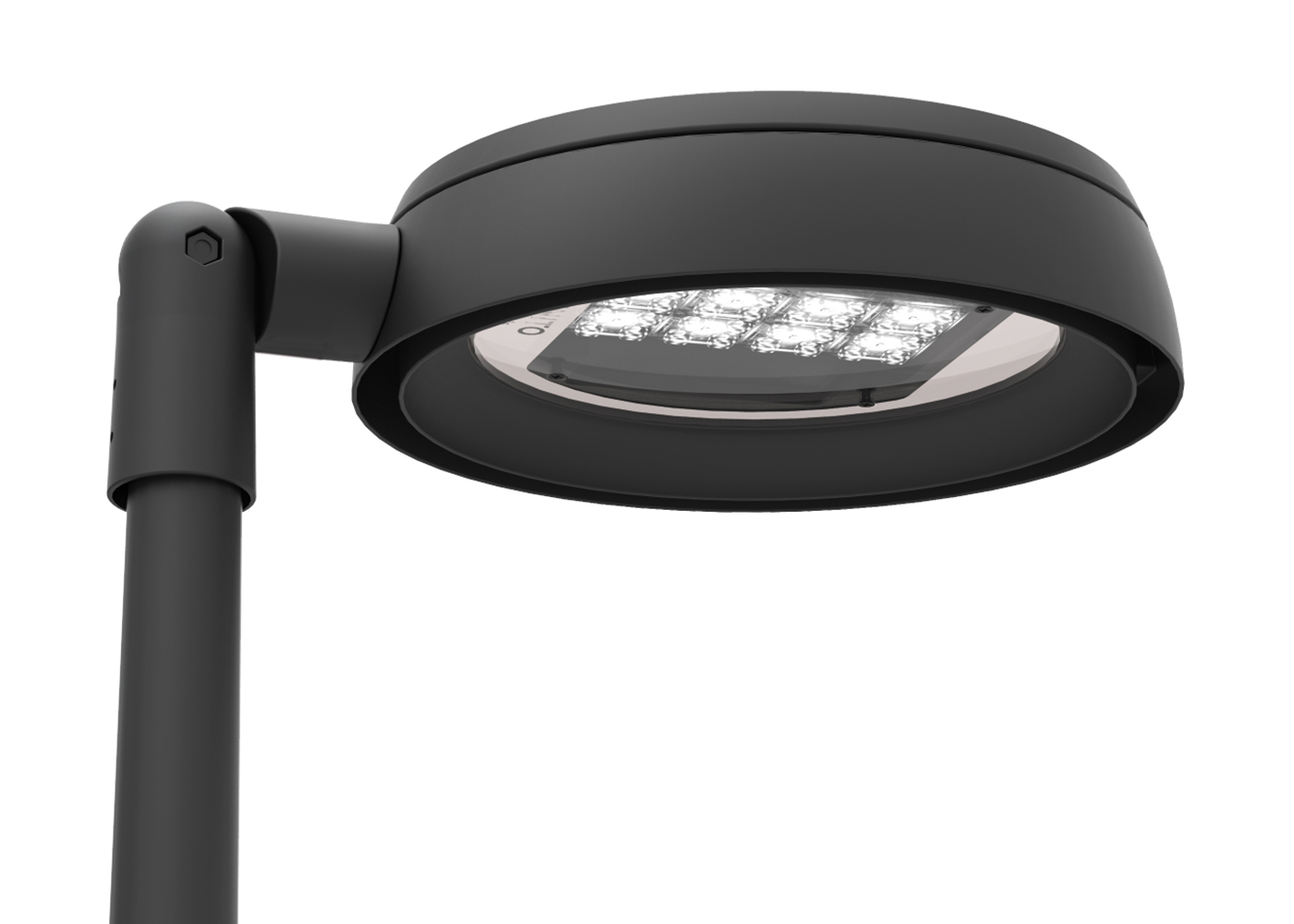

Deco Horizon belongs to the Essentials family, a set of luminaires of different typologies and styles that share total aesthetic coherence between them. Elegant, decorative, functional and contemporary design. Designed for ambient urban lighting applications, adapting to different urban spaces. Ideal for installation on supports between 4 and 8 metres. Optical design optimised for perfect glare control, cut-off suitable for pedestrians and no emission towards the upper hemisphere.
MAIN FEATURES:
High efficiency. Up to 142 lm/W real
Essentials Family. From 20W to 120W
Passive dissipation without fins
Easy opening without tools
18 different light distributions
Zhaga Standard (Book 15)
Ready 4IoT. Ready for connectivity
APPLICATIONS:
Urban Roads and Streets
Residentials Streets (Zones 30)
Cycle Lane and Narrow Tracks
Rural Roads
Parking
See more… Success stories that inspire

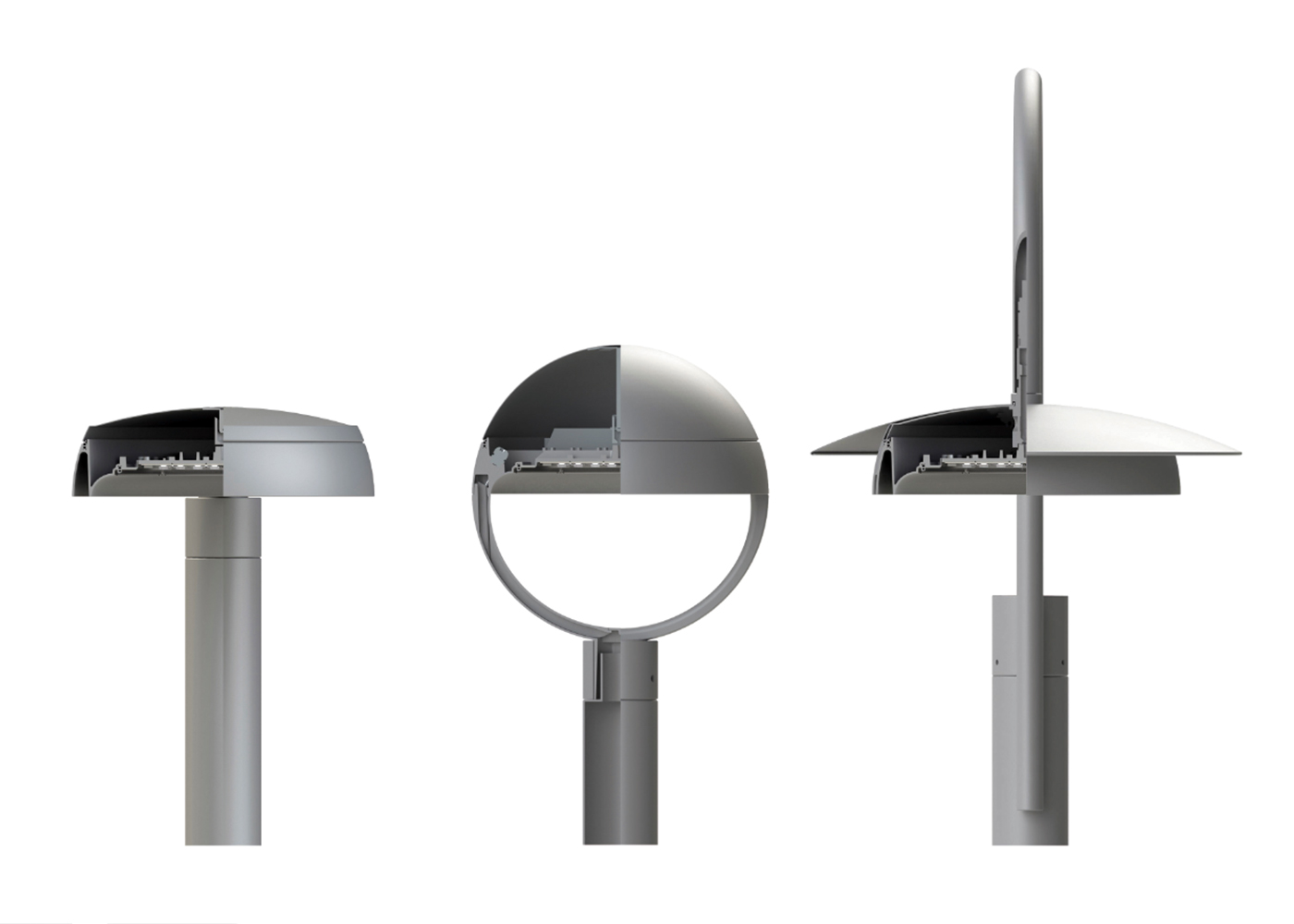

Other products of the family

Design - By Ramón Úbeda & Otto Canada.

Side or top installation.

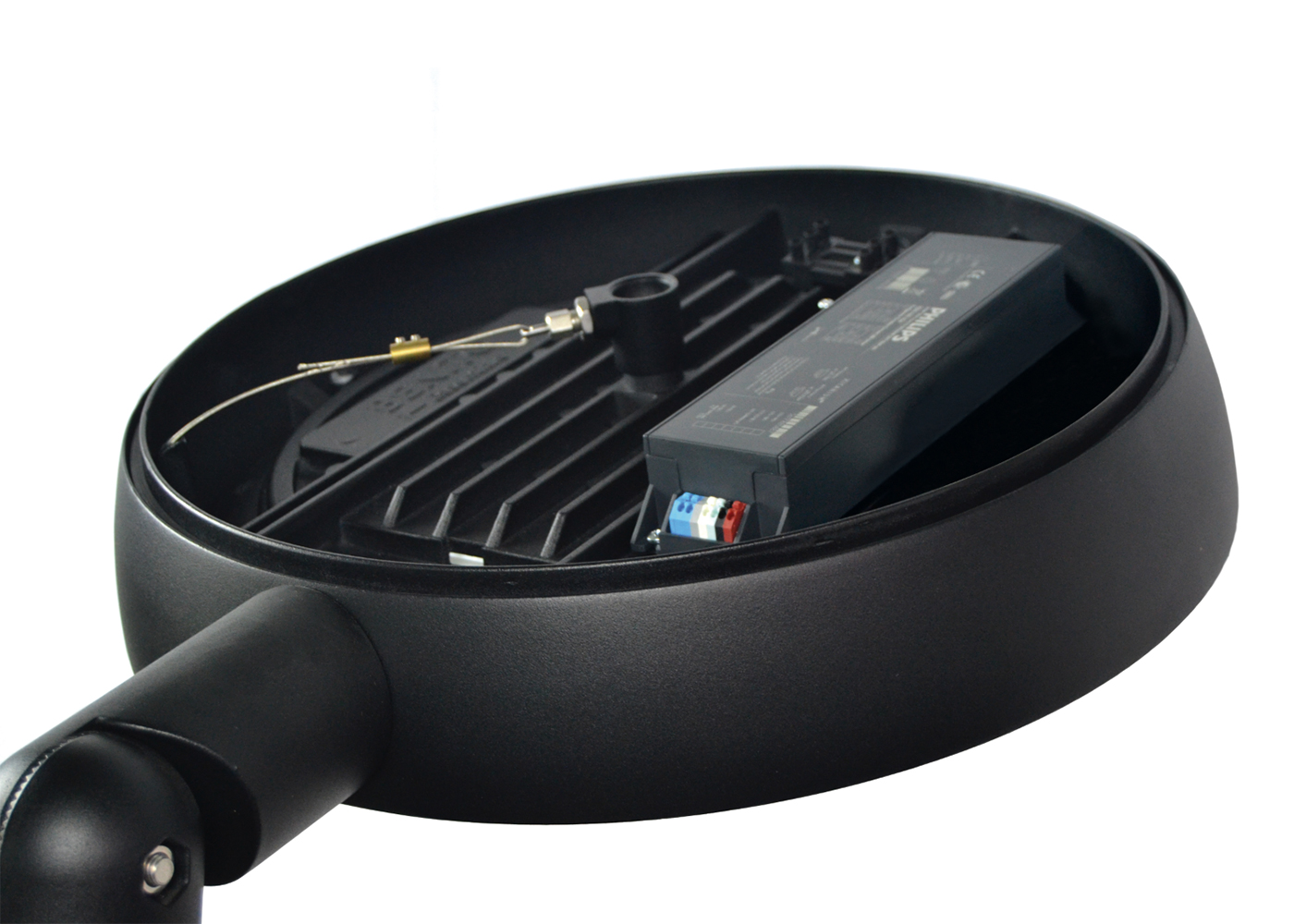

Opening without tools.
| Real luminous flux (T) =85ºC) | Initial luminous flux (T) =25ºC) |
| REF. | Nº LEDs | Power W | I Driver mA | Flux lm | Efficacy lm/W | Flux lm | Efficacy lm/W |
| DECO HORIZON | ILDH | 16 | 20 | 375 | 2842 | 142 | 3240 | 162 |
| 16 | 30 | 563 | 4242 | 141 | 4836 | 161 |
| 16 | 40 | 750 | 5642 | 141 | 6432 | 161 |
| 32 | 50 | 470 | 7050 | 142 | 8055 | 162 |
| 32 | 60 | 563 | 8460 | 141 | 9644 | 161 |
| 32 | 80 | 750 | 11280 | 141 | 12859 | 161 |
| 48 | 100 | 625 | 14100 | 141 | 16074 | 161 |
| 48 | 120 | 750 | 16920 | 141 | 19289 | 161 |

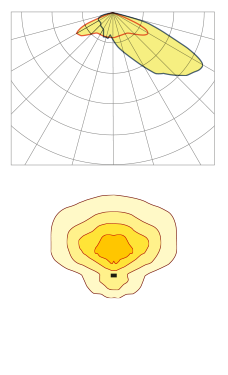

Asymmetric Extensive Frontal (A1)

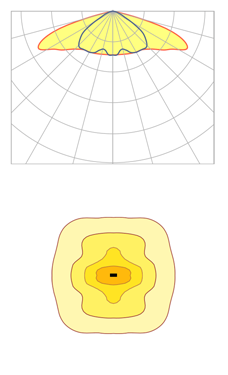

Symmetric Extensive (SE)
Asymmetric Extensive (AE)
Asymmetric Extensive Wide (A3)
*Show 4 recommended lighting distributions. Refer to the 18 typologies.
