Luminaire Neovilla-Alu Suspended
ILNAS
X Product added successfully to your WISHLIST. If you want to see all the products click here.
Description
Classic decorative luminaire with an exclusive design including all necessary technical details for LED technology. Ideal for historical places and urban areas such as roads and squares. Ready for any intelligent lighting control solutions.
MAIN FEATURES:
High efficiency. Up to 134 lm/W net
From 20W to 80W
18 light distribution curves
Zhaga Standard (Book 15)
Tempered glass with sealing joint to obtain an IP66 rating
Exclusive design
Tool-less opening
APPLICATIONS:
Historical Centres
Residential Streets (Zones 30)
Pedestrian Zones
Commercial and Tourist Streets
Rural Roads
See more…
Customers who liked this itme also liked:
| Real luminous flux (T) =85ºC) | Initial luminous flux (T) =25ºC) |
| REF. | Nº LEDs | Power W | I Driver mA | Flux lm | Efficacy lm/W | Flux lm | Efficacy lm/W |
| Neovilla Alu Suspended | ILNAS | 16 | 20 | 375 | 2600 | 130 | 2964 | 148 |
| 16 | 30 | 563 | 3900 | 130 | 4446 | 148 |
| 16 | 40 | 750 | 5160 | 129 | 5882 | 147 |
| 16 | 60 | 1125 | 7680 | 128 | 8755 | 146 |
| 32 | 80 | 750 | 10400 | 130 | 11856 | 148 |
| 32 | 100 | 938 | 12900 | 129 | 14706 | 147 |

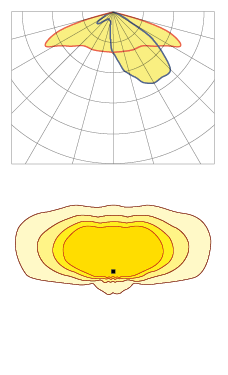

Super-Extensive Asymmetric (AE)

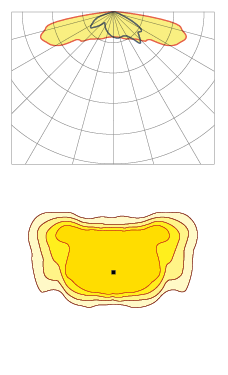

Extensive Asymmetric (A3)
Extensive Asymmetric (AM)

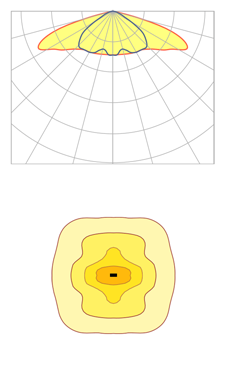

Super-Extensive Circular Symmetric (SE)
*Show 4 recommended lighting distributions. Refer to the 18 typologies.
